Notably absent from the included accessories are any kind of safety goggles, a surprising omission for a laser engraver that has a base price of nearly $1,000. While the UV shield acts as a filter for laser radiation, goggles are an important piece of PPE when using a laser to help prevent damage to your eyes.

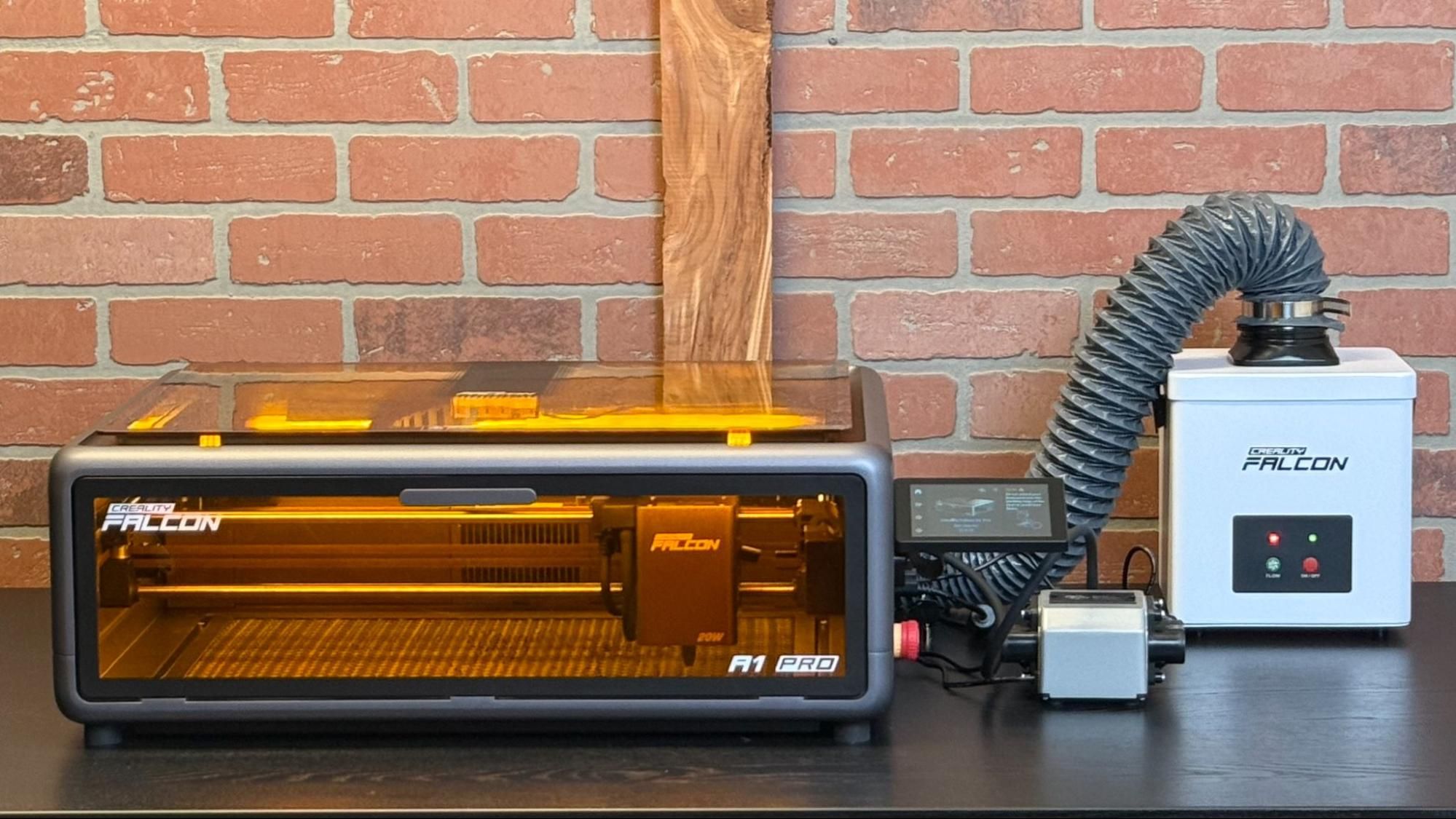

Image credit: Tom's Hardware Image credit: Tom's Hardware The Creality Falcon A1 Pro is a well-designed machine, with smooth corners and countersunk bolts giving it a very intentional appearance. The build volume is illuminated with a bright array of LEDs, and the automatic focusing laser is concealed in the front right corner. The toolhead gantry moves without friction across a pair of smooth rods, and the toothed belts have an exposed tensioner to adjust if needed.
Unlike the lower-cost Creality CR Falcon , the Falcon A1 Pro is fully enclosed and contains multiple safety features and sensors that make it a more attractive option for prosumer or shared use. The overall build quality of the Falcon A1 Pro is solid, and it seems like Creality is really paying attention to the important little details to justify the higher price of the machine.
The input/output is on the side of the Falcon A1 Pro and includes ports for power, air, USB, and optional connections for the rotary kit and a USB drive. There is also a lockout feature that requires a special key to activate the machine, preventing it from being used by anyone who does not have access to the key. As far as safety features go, this is a very useful one and critical in any shared-use environment, such as a makerspace, R&D lab, or factory floor.
Image credit: Tom's Hardware Image credit: Tom's Hardware The laser toolhead of the Falcon A1 Pro is removable with only two sliding levers, so swapping it out takes under a minute. Creality currently offers two toolheads for the Falcon A1 Pro: the 20W diode laser for general non-metal cutting and engraving and the 2W IR laser for engraving on metal and glass surfaces. The toolhead is mounted on a sliding track, so the automatic focusing (more on that later) can be done without any manual intervention.
The optional $69 honeycomb for Falcon A1 Pro provides an elevated platform for laser cutting, which allows for airflow underneath parts being cut. Honeycomb platforms have a dramatic impact on the quality of parts produced on laser engravers, and adding this platform should be the first thing you do if you plan on producing parts to sell or even give away. Without this platform, the workpiece will rest directly on the metal baseplate of the Falcon A1 Pro, and parts will require cleaning immediately after processing.
The Falcon A1 Pro is capable of automatic leveling to detect the height of a piece of material, a useful addition that keeps users from having to manually set the height for every single processing job. The laser is integrated into the enclosure and allows for precision calibration in only a few seconds. I used the automatic calibration throughout the review and had no failures or issues with the feature.
Image credit: Tom's Hardware Image credit: Tom's Hardware The Falcon A1 Pro has a camera integrated into the top cover of the unit, an invaluable tool for visualization and laying out complex jobs across multiple workpieces. An interesting feature is the sliding cover, which can be raised up to block the view of the camera. This cover is actually inside the acrylic cover of the camera, which is something to note if you’re concerned about smoke eventually working into the enclosure and obscuring the view of the camera.
(Image credit: Tom's Hardware) (Image credit: Tom's Hardware) The LCD offers a user interface similar to a modern 3D printer with a list of jobs, machine settings, and tools available. The placement feels like an afterthought, and I found myself being careful when moving the unit to avoid snapping it off or breaking it from the bracket that attaches it to the machine. While I was very happy to have an interface on the machine to track engraving time and progress, it’s easy to imagine that this will be a frequently replaced part.
There is an Emergency Stop (E-Stop) button located directly under the screen on the right side of the unit, something typically seen on industrial hardware and machinery. Given the high power of the laser and typically flammable work material, the E-Stop is an excellent addition by Creality to increase the safety of the unit and make it easier to disable if something unexpected occurs. The Falcon A1 Pro also has a flame sensor, which immediately disables the unit if an open flame is detected, something I did not experience during testing.
The Desktop Smoke Purifier has an advertised airflow of 115m³, significantly less than the 300m³/h airflow of the more expensive WeCreat Fume Extractor . The three speeds of the Desktop Smoke Purifier are quiet and not particularly disruptive, but I found that the filter was easily overwhelmed during cutting and was not able to effectively filter smoke from the unit. Even with the unit at the highest setting, cutting through plywood often resulted in smoke that lingered in the unit even after the processing was complete.
Creality Falcon Design Space is a first-party software app that supports Mac, Windows, and mobile devices (iOS and Android). The interface will be familiar to anyone who has used xTool Creative Space, WeCreat MakeIt!, or LightBurn for controlling a laser engraver. Falcon Design Space allows users to adjust all the parameters you’d expect (speed, power, processing order), as well as basic image editing tools like cropping, offsetting, and similar operations.
Falcon Design Space also has a live view mode using the integrated camera, which is an invaluable tool for laying out jobs on material when a precise preview is required. The camera on the demo unit required calibration before use, which is performed using the included calibration sheet and takes about 10 minutes to complete.
Included in the Falcon Design Space software is a robust selection of projects specifically designed for a variety of materials, occasions, and skill levels. I’ve found catalogs like this are a great way to get started with the laser to understand how to create products and models without also requiring a background in graphic design. While writing this review, I used several projects from this catalog and was generally satisfied with the level of documentation provided by Creality.
The Material parameter library includes various materials like basswood, acrylic, stone, and others with common thicknesses selectable. Selecting a material will automatically populate the parameters for either a selected layer or all layers, something to be careful with when you have a job with multiple operations.
Unfortunately, the material library doesn’t include photo examples of the impact of changing the parameters, like the Material test in WeCreat MakeIt!. While this isn’t a requirement for a processing software, it means that users will need to run at least one test to dial in engraving, fill, and cut parameters before committing to a larger job.
There are many useful tools in Falcon Design Space, including the Smart Cutout feature to isolate specific parts of photos with a ‘Magic Wand’ functionality. This tool worked well during testing, and when combined with a greyscale or B&W filter it’s a powerful way to quickly prepare a photo for engraving. The typical workflow involves using Smart Cutout to isolate an image, filter to simplify the image and adjust contrast / brightness, and offset to generate a conformal cutline around the part. These tools in Falcon Design Space are incredibly useful to beginners, but more advanced users may be interested in the highly granular controls offered in advanced software like LightBurn.
The basic process when using the Creality Falcon A1 Pro is simple: set up a job in Falcon Design Space, place a workpiece in the build area and check alignment, and hit ‘Start’. The Falcon A1 Pro can use the integrated Wi-Fi to connect to the software as well as a direct USB connection to a computer. Falcon Design Space turbocharges this process by including a “Make It” button right on the project page, which will immediately open up a new project with laser parameters already populated.
Image credit: Tom's Hardware Image credit: Tom's Hardware The 20W diode laser creates sharp and defined lines during line engraving moves, as well as clean and deep features during fill engrave moves. The gantry moves the toolhead smoothly during large travel moves without stuttering or skipping, resulting in clean contours and even engravings. The default cutting speed for 3mm plywood is set to 550 mm/min, and the fill engraving speed is set to 6000 mm/min.
Falcon Design Space also includes a “Smart Fill” tool which will take a selected graphic and automatically copy it across multiple parts on a build. This is an incredibly useful tool if you are making multiple parts in a single build that have the same image. Using one of the included projects, I loaded and oriented a “Happy Halloween” graphic and duplicated it across 7 other parts. The tool worked without intervention and the graphic was automatically rotated on each of the tags.
The job took 16 minutes and 42 seconds using the default speed and power settings for 3mm basswood plywood. I placed one of the tags in the center of the workspace so the automatic focusing laser could be used to set the height, and this worked for all the other tags. This tool is also present in the xTool Creative Space software used by the xTool M1 laser engraver and other lasers that are aimed at small businesses and entrepreneurs, which helps to create a complete solution for business owners interested in maximizing the efficiency of their investment.
(Image credit: Tom's Hardware) (Image credit: Tom's Hardware) The diode laser is more than capable of cutting through the Creality-provided 3mm walnut plywood quickly, processing a pair of monstera leaf coasters in just over 5 minutes. The organic engrave lines in the center are smooth and precise thanks to the fine spot size of the diode laser, with no jitter or areas of low resolution. The raised honeycomb platform prevented any burn marks from appearing on the surface of the coaster, and the underside was also completely free of defects.
Not just for cutting plywood, the Creality Falcon A1 Pro is also advertised as being able to process PU leather, stone, and other materials that you would typically see used with a diode laser. Using the default settings for a slate coaster, this design took 13 minutes and 55 seconds to engrave completely.
Image credit: Tom's Hardware Image credit: Tom's Hardware The 20W blue laser easily etched the surface of the stone coaster, and the quality of the engraving was consistent even across the uneven surface of the slate material. The appearance of the engraving can be altered by adjusting the speed and intensity of the laser, something which can be used to make engravings that appear to have multiple colors or layers.
Other materials like dual-layer PU leather patches are also capable of being engraved with the 20W diode laser, and I was satisfied with the overall quality of these engravings. Falcon Design Space contains basic parameters for this material and others, which allowed me to dial in the appearance of the engraving without needing to run multiple tests to figure out the base settings.
Creality offers the Falcon A1 Pro in a variety of bundles, and the Basic Pack used in this review (which includes the laser and the honeycomb platform) is a solid deal at $949. While it’s not one of the best laser engravers , the Falcon A1 Pro is a solid entry in the sub-$1,000 price point for a prosumer laser engraver. Having a fully enclosed work area with an exhaust is a huge benefit for managing smoke and fumes, and the automatic leveling removes much of the manual work involved with setting up a job.
Optional accessories not covered in this review include a 2W IR laser for engraving metal and a rotary attachment for engraving tumblers, rings, and other cylindrical objects. Creality has also recently launched a larger air purifier for the Falcon that may be worth investigating if you think the smaller unit isn’t going to cut it.
If money isn’t an issue and you’re looking for something with a stronger diode laser, the WeCreat Vision Pro 45W sells for around $2,249 and offers a similar software experience. If you don’t need all the bells and whistles, the smaller WeCreat Vista offers a lower power laser while keeping the enclosure and sub-$800 price point.
Andrew Sink Social Links Navigation 3D Printing Writer Andrew Sink first used a 3D printer in 2012, and has been enthusiastically involved in the 3D printing industry ever since. Having printed everything from a scan of his own brain to a peanut butter and jelly sandwich, he continues to dive ever more deeply into the endless applications of additive technology. He is always working on new experiments, designs, and reviews and sharing his results on Tom's Hardware, YouTube, and more.
