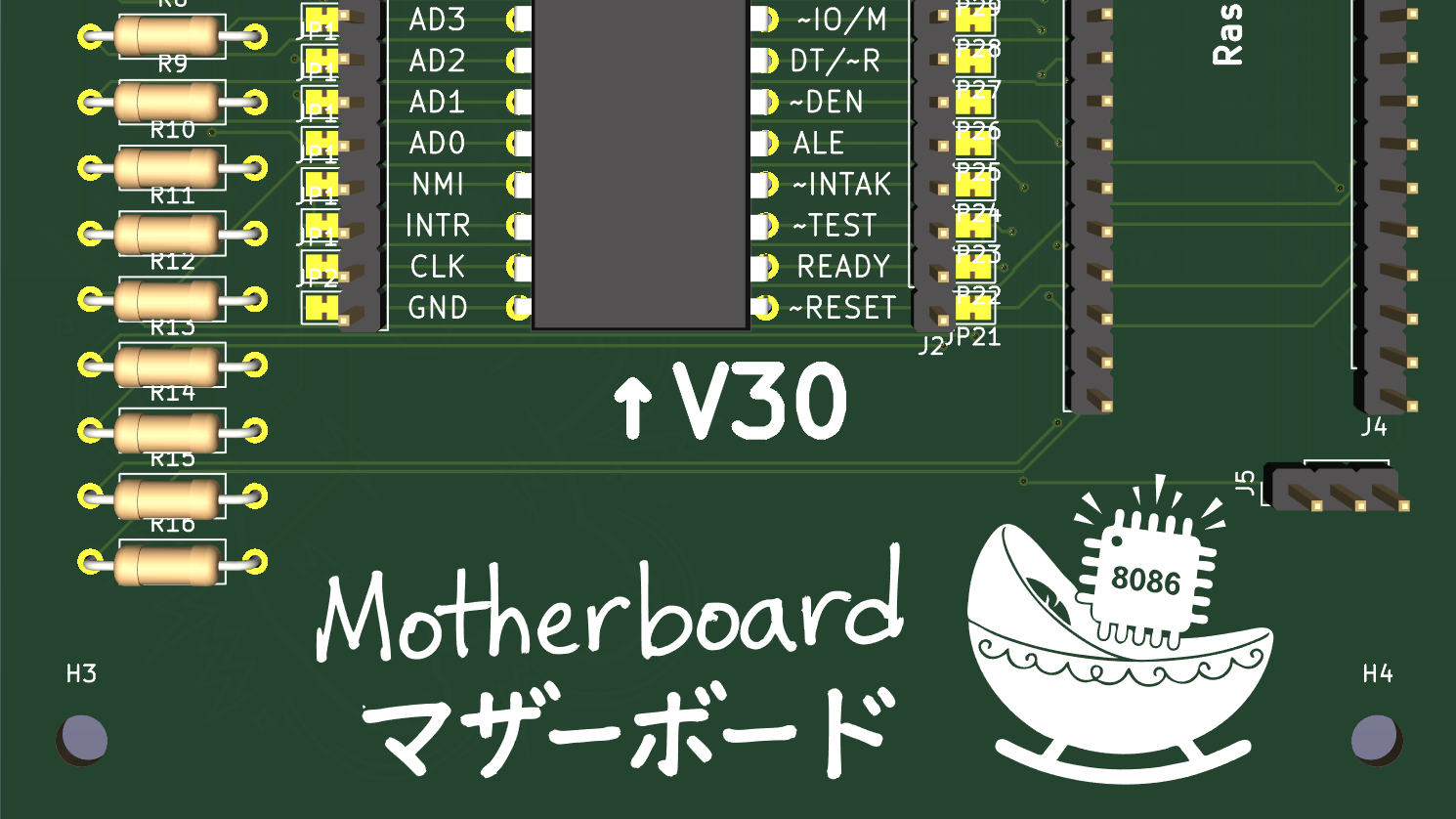

This is the moment where the AI bot started showing its limitations, as it suggested changes to the circuit, blissfully unaware of the material or time costs involved. Ikejima rolled up his sleeves and got out his logic analyzer, which promptly "went berserk" on connection. As it turns out, the 8086 design uses the same physical line for addresses and code, switching between them at each clock tick.
Once he sorted that out with the control software, he came across another bug that should have been obvious: 8086 chips use one RAM chip for even bytes, and another for odd bytes. After a handful of fixes, Ikejima finally got the CPU to work and execute code. He then figured he wanted to run actual software on it, and settled on getting MS-DOS' COMMAND.COM.
That effort proved more than he had considered, as COMMAND.COM rewrites itself in memory, and requires some interfacing to an actual BIOS and I/O — while all he effectively had was a CPU socket and some memory. After more research, he settled on using HI-DOS on the cradle side to be able to have a BIOS, and eventually booted HIDOS MS-DOS, albeit with some limitations, like the lack of writeable storage and the limited amount of memory.
Even still, he did manage to run some simple programs, culminating in what's effectively a pretty impressive demonstration of what's possible when you couple human logic and reasoning with the massive helping hand of an AI bot. Do read the entire adventure at Ikejiima's blog .
