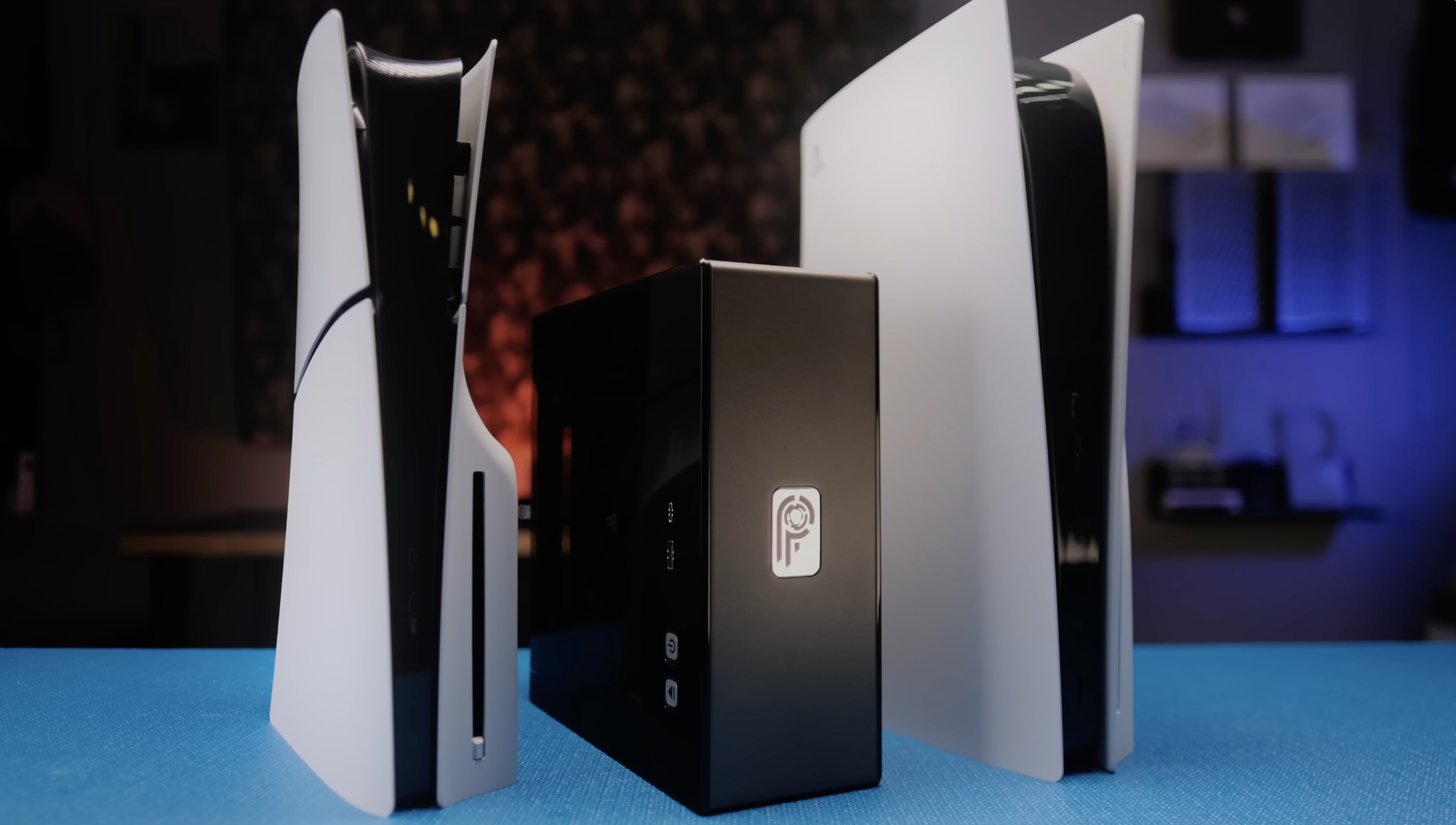

As its name suggests, the primary goal of the Tiny PS5 Redux is to reduce the PlayStation 5's size so it's easier to carry around. The device has a volume of six liters, which is 19% more compact than the PlayStation 5 Slim and up to 43% smaller than the original PlayStation 5.
Watch On The Tiny PS5 Redux is not only more portable but also incorporates several enhancements, including improved heat dissipation and wireless connectivity. The PlayStation 5's PCB is positioned between two custom-printed heat sink plates. Additionally, a low-profile Alpenföhn Black Ridge CPU cooler, equipped with two slim 120mm Noctua Chromax fans, maintains optimal thermal performance for the custom AMD 6nm Obreron SoC . Cool air enters the device through the rear, while three 60mm Noctua fans expel hot air through the side panel.
The original antennas on the PlayStation 5 are located within the Tiny PS5 Redux, but they connect to a pair of external antennas to enhance connectivity. Due to spatial constraints, an M.2 extension cable links to a 3D-printed M.2 bracket, facilitating the use of the best PS5 SSDs with M.2 2280 support and a maximum capacity of up to 8TB . A 500W GaN power supply powers the Tiny PS5 Redux to ensure sufficient electrical provision.
According to the modder's benchmark results, the Tiny PS5 Redux pulled around 220W in Clair Obscur: Expedition 33 with temperatures up to 50 degrees Celsius. It ran cooler and drew less power than the creator's original Tiny PS5 project (220 to 225W and 56 degrees Celsius) and a stock PlayStation 5 (230 to 235W and 59 degrees Celsius).
