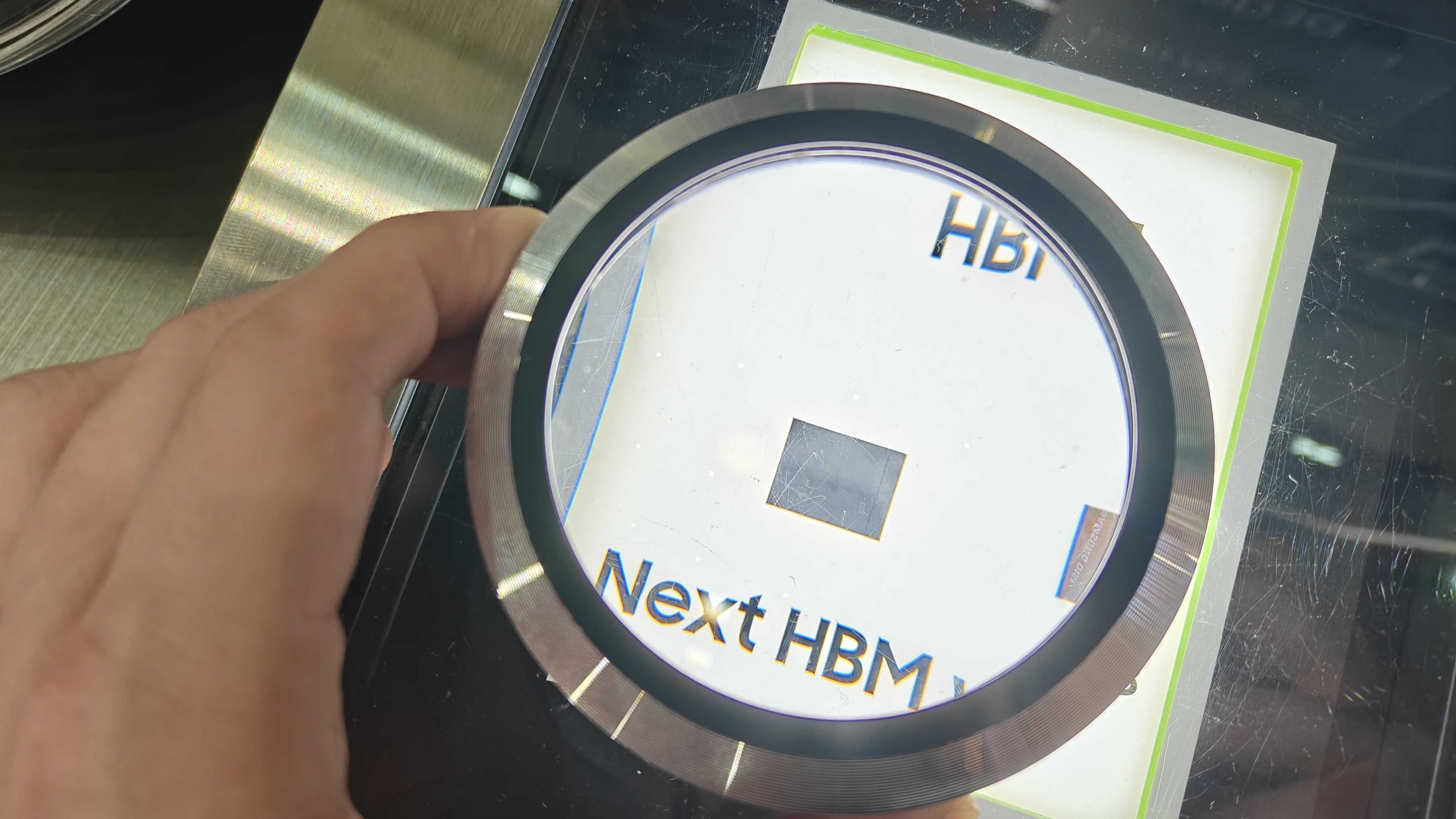

The goal of HBM5, which is currently under development, is to double the performance and improve the performance per watt by 20% compared to the HBM4E generation, according to Choi Jang-seok, the head of the product planning team of the memory business department of Samsung Electronics DS division. Previously, Samsung announced that its HBM5 memory stacks will feature a heat path block (HPB), which will reduce thermal resistance by 20% and simplify cooling of HBM5 modules.
Doubling HBM5’s per-stack memory bandwidth would result in peak bandwidth of around 4 TB/s per stack already in 2028 – 2029. TSMC expects AI accelerators to get to 20 – 24 HBM5/HBM5E per package configurations by the end of the decade , which means that these systems-in-packages will get a whopping 80 TB/s – 96 TB of memory bandwidth just several years down the road.
Although both DRAM makers like Micron, Samsung, or SK hynix as well as developers of HBM controllers and PHYs like Cadence, Rambus, or Synopsys already offer HBM4/HBM4E controllers and interfaces rated for 16 GT/s data transfer rates, the official JEDEC transfer rate for HBM4E will be around 12 GT/s.
If Samsung expects HBM5 to deliver twice the bandwidth of HBM4E, the HBM5 specification must either double the per-pin data transfer rate from 12 GT/s to 24 GT/s, double the interface width from 2,048 to 4,096 bits, or combine a wider interface with a higher data transfer rate. Increasing HBM5 memory stack interface width to 4,096 bits has so far been envisioned by KAIST and Marvell ; however, this is certainly not an even semi-official confirmation of the specification's target.
